What Is 220GSM Cotton FR Fabric?
220GSM cotton FR fabric is a lightweight 100% cotton flame-retardant fabric designed for industrial workwear, factory uniforms and protective clothing. It is suitable for workwear projects that need flame-retardant performance, cotton comfort and better breathability.
Compared with heavier cotton FR fabrics, 220GSM cotton FR fabric offers a lighter hand feel and better wearing comfort. It is often used for daily industrial uniforms, maintenance workwear, factory uniforms and protective clothing in warmer working environments.
SAFE-GUARD SG-FRCO220 is made from 100% cotton with 3/1 twill construction and durable FR finishing. The current fabric weight is 220g/m² ±5%, with a full width of 148–150cm.
This fabric is not positioned as the first choice for heavy-duty welding, heavy sparks or high-risk molten metal splash environments. For higher heat exposure, stronger abrasion or heavier protective clothing needs, buyers can review heavier cotton FR fabric options such as 305GSM or 350GSM.
For more cotton FR fabric options by GSM, application and standard, view our related category page: Cotton FR Fabric

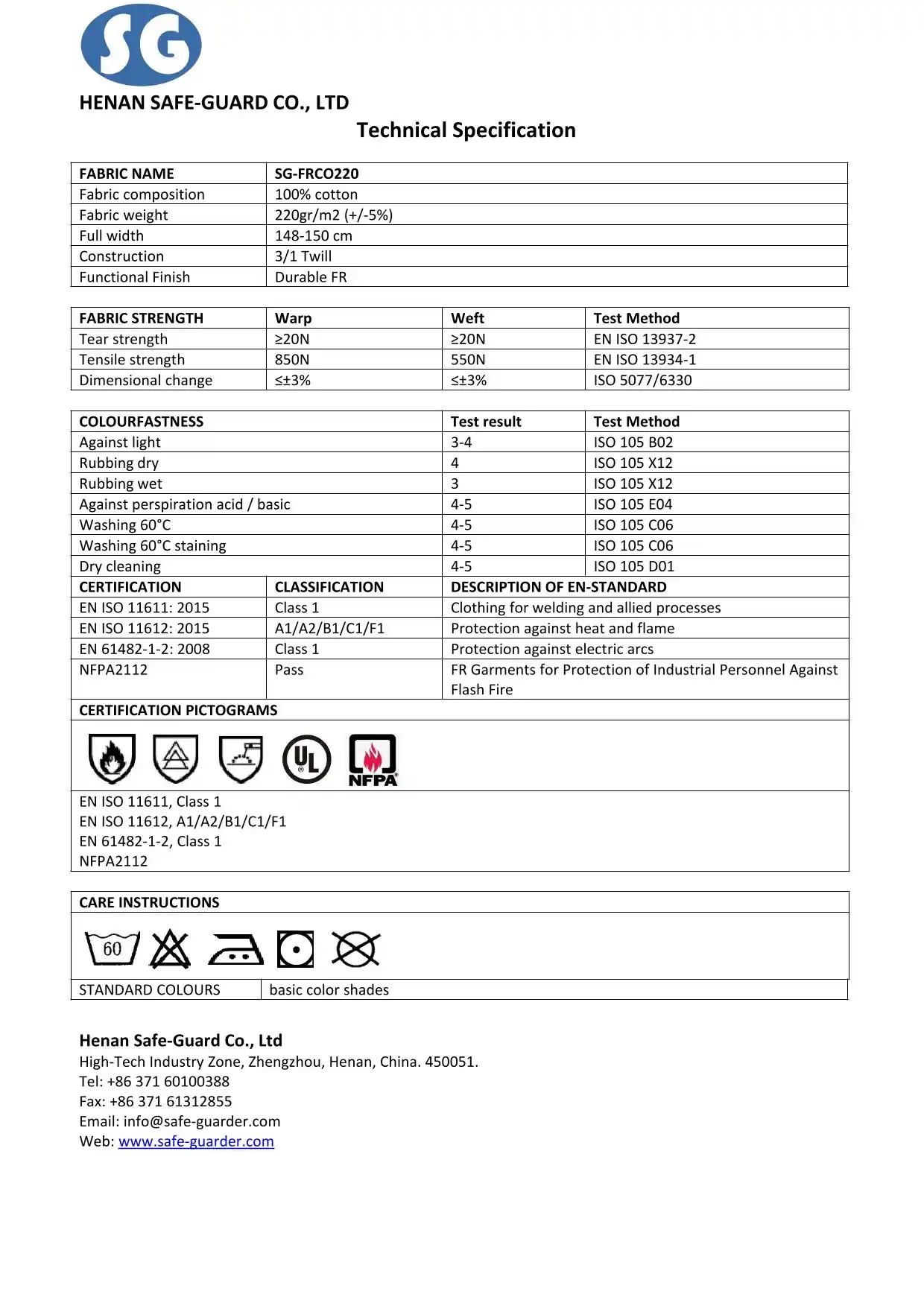

Technical Data of 220GSM Cotton FR Fabric
The following technical data is based on SAFE-GUARD SG-FRCO220 current TDS.
| Item | Specification / Test Result | Test Method |
|---|---|---|
| Fabric Name | SG-FRCO220 | — |
| Composition | 100% Cotton | — |
| Fabric Weight | 220g/m² ±5% | — |
| Full Width | 148–150cm | — |
| Construction | 3/1 Twill | — |
| Functional Finish | Durable FR | — |
| Tear Strength | Warp ≥20N / Weft ≥20N | EN ISO 13937-2 |
| Tensile Strength | Warp 850N / Weft 550N | EN ISO 13934-1 |
| Dimensional Change | Warp ≤±3% / Weft ≤±3% | ISO 5077 / 6330 |
| Colorfastness to Light | 3–4 | ISO 105 B02 |
| Rubbing Dry | 4 | ISO 105 X12 |
| Rubbing Wet | 3 | ISO 105 X12 |
| Perspiration Acid / Basic | 4–5 | ISO 105 E04 |
| Washing 60°C | 4–5 | ISO 105 C06 |
| Washing 60°C Staining | 4–5 | ISO 105 C06 |
| Dry Cleaning | 4–5 | ISO 105 D01 |
Care instructions and wash performance should be confirmed according to the final garment design, washing method and buyer’s target requirements.
Standards and Testing Direction
SAFE-GUARD 220GSM cotton FR fabric can support the following testing directions according to the current TDS.
| Standard | Classification | Protection Direction |
|---|---|---|
| EN ISO 11611:2015 | Class 1 | Clothing for welding and allied processes. |
| EN ISO 11612:2015 | A1/A2/B1/C1/F1 | Protection against heat and flame. |
| EN 61482-1-2:2008 | Class 1 | Protection against electric arcs. |
| NFPA 2112 | Pass | FR garments for protection of industrial personnel against flash fire. |
Although 220GSM cotton FR fabric is lightweight, the final suitability should be confirmed according to the garment design, working environment, risk level and buyer’s testing requirements.
For heavy welding, higher heat exposure or stronger abrasion requirements, heavier cotton FR fabric options may be more suitable
Applications and Recommended Use Regions
220GSM cotton FR fabric is suitable for industrial workwear projects that require lightweight comfort, cotton breathability and flame-retardant protection. It is especially useful when workers need protective clothing in hot, humid or indoor working environments.
Main Applications
| Application | Why 220GSM Cotton FR Fabric Fits |
|---|---|
| Lightweight Industrial Workwear | Lighter fabric weight for daily workwear comfort. |
| Factory Uniforms | Suitable for general industrial uniforms and production environments. |
| Maintenance Workwear | Comfortable option for repair, inspection and daily maintenance tasks. |
| Warm-Climate Workwear | Better breathability than heavier FR fabric options. |
| Indoor Industrial Workwear | Suitable for indoor work areas where comfort is important. |
| Utility Workwear | Can be considered for lightweight protective uniforms. |
| Oil & Gas Lightweight Workwear | NFPA 2112 testing direction can support flash fire protection requirements depending on project needs. |
| General Protective Clothing | Suitable for projects needing cotton comfort and FR protection. |
| Notice: For welding, foundry, smelting or heavy-duty workwear projects, buyers should confirm whether a heavier cotton FR fabric is more suitable. | |
Recommended Use Regions
| Region / Market Direction | Why 220GSM Cotton FR Fabric Fits |
|---|---|
| Southeast Asia | Suitable for hot and humid working environments where lighter FR workwear is needed. |
| Middle East | Can be used for lightweight industrial uniforms in warm-climate projects. |
| Africa | Suitable for mining, maintenance and industrial uniform projects where comfort and FR protection are both required. |
| South America | Suitable for warm-region industrial workwear and protective uniform programs. |
| South Asia | Can support lightweight FR workwear needs in hot and humid climates. |
| Summer Workwear in Europe | Suitable for seasonal lightweight FR uniform programs. |
| Indoor Factory Environments | Lighter fabric weight helps improve comfort during long working hours. |
| Note: The final fabric choice should still be based on workplace risk, target standard, garment design and buyer testing requirements. | |
220GSM vs Heavier Cotton FR Fabric
Different cotton FR fabric weights are suitable for different workwear needs. 220GSM is mainly selected for lightweight workwear and comfort-focused protective clothing.
| Fabric Weight | Main Advantage | Suitable Use |
|---|---|---|
| 220GSM Cotton FR Fabric | Lightweight, breathable, comfortable. | Warm-climate workwear, factory uniforms, daily industrial workwear. |
| 250–280GSM Cotton FR Fabric | Better balance of comfort and durability. | General industrial workwear and protective uniforms. |
| 305GSM Cotton FR Fabric | Stronger fabric weight and protection direction. | Welding, mining, maintenance and heavier workwear. |
| 350GSM+ Cotton FR Fabric | Heavier-duty fabric performance. | Heavy industrial workwear and stronger wear requirements. |
If the workwear project focuses on comfort and daily wearing performance, 220GSM cotton FR fabric can be a suitable option. If the project involves more sparks, higher heat or stronger abrasion, heavier cotton FR fabric should be considered.
Functional Options
SAFE-GUARD can develop 220GSM cotton FR fabric with additional finishing options according to buyer requirements.
| Option | Function | Suitable Use |
|---|---|---|
| Standard 220GSM Cotton FR Fabric | Flame-retardant protection with lightweight cotton comfort. | Lightweight workwear and industrial uniforms. |
| Anti-Static Cotton FR Fabric | Flame protection with static-control performance. | Static-sensitive industrial workwear. |
| Water / Oil Repellent Cotton FR Fabric | Additional liquid and stain resistance. | Maintenance workwear and industrial uniforms. |
| Custom Color Cotton FR Fabric | Color matching for uniform programs. | Bulk workwear and brand uniform projects. |
Additional functions are not default features of every 220GSM cotton FR fabric. They should be confirmed before sampling according to the buyer’s working environment, target standard and testing requirements.
Why Choose SAFE-GUARD 220GSM Cotton FR Fabric
Lightweight Cotton FR Fabric Development
SAFE-GUARD can support lightweight cotton FR fabric development for workwear projects that need comfort, breathability and flame-retardant performance.
Stable Weight and Width
SG-FRCO220 is supplied at 220g/m² ±5% with 148–150cm full width according to the current TDS. This supports bulk garment cutting and uniform production.
3/1 Twill Structure for Workwear
The 3/1 twill construction provides a practical fabric structure for industrial uniforms and protective workwear. It supports daily workwear use while keeping the fabric lighter than heavier cotton FR options.
FR Finishing Control
The flame-retardant finishing process can be adjusted according to fabric weight, target standard and washing requirements. Final FR performance should be confirmed by test data.
Strength and Shrinkage Control
The current technical data includes tear strength, tensile strength and dimensional change control. This supports product evaluation for workwear manufacturers before bulk production.
Application-Based Fabric Recommendation
If 220GSM is too light for the final use, SAFE-GUARD can recommend heavier cotton FR fabric options such as 250GSM, 305GSM or 350GSM based on the workwear application.
Custom 220GSM Cotton FR Fabric Support
SAFE-GUARD supports custom 220GSM cotton FR fabric development for workwear and protective clothing projects.
Custom Options
- Custom color
- Custom width
- Custom hand feel
- Shrinkage control
- Durable FR finishing
- Anti-static option
- Water / oil repellent option
- Sample matching
- Bulk production support
- Testing support
- TDS support
Before sampling, buyers can share the target fabric sample, GSM, color, application, standard requirement and order quantity. SAFE-GUARD can help recommend a suitable fabric direction.
FAQ
Is 220GSM Cotton FR Fabric too light for industrial workwear?
220GSM cotton FR fabric is a lightweight FR fabric option. It is suitable for daily industrial uniforms, factory workwear, maintenance clothing and warm-climate protective garments. For heavy sparks, stronger abrasion or higher heat exposure, heavier cotton FR fabric such as 305GSM or 350GSM may be more suitable.
Is 220GSM Cotton FR Fabric suitable for hot climates?
Yes. 220GSM cotton FR fabric is suitable for warm-climate markets, tropical and subtropical regions, summer workwear programs and indoor industrial environments where workers need lighter and more breathable protective clothing.
Can 220GSM Cotton FR Fabric support NFPA 2112?
According to the current TDS, SG-FRCO220 has NFPA 2112 Pass direction. Final use should still be confirmed according to garment design, buyer requirements and test documentation.
Can 220GSM Cotton FR Fabric be used for welding workwear?
It can support EN ISO 11611 Class 1 testing direction according to the current TDS. However, for heavy welding, heavy sparks or higher heat exposure, heavier cotton FR fabric such as 305GSM or 350GSM may be more suitable.
What is the difference between 220GSM and 305GSM Cotton FR Fabric?
220GSM cotton FR fabric is lighter and more suitable for warm-climate workwear and daily uniforms. 305GSM cotton FR fabric offers a heavier fabric weight and is more suitable for welding, mining, maintenance and heavier protective clothing needs.
Can 220GSM Cotton FR Fabric be made with anti-static performance?
Yes. Anti-static performance can be developed according to project requirements by adding suitable conductive yarn design or anti-static structure.
Can 220GSM Cotton FR Fabric be made with water or oil repellent finishing?
Yes. Water repellent or oil repellent finishing can be discussed according to the buyer’s working environment and target requirements. These functions are not default features of every 220GSM cotton FR fabric.
Can the color be customized?
Yes. SAFE-GUARD can support basic color shades and custom colors according to buyer requirements.
Can SAFE-GUARD match our existing 220GSM FR fabric sample?
Yes. Buyers can provide target samples for fabric matching. SAFE-GUARD can review composition, GSM, hand feel, color, finishing and testing requirements before sample development.
Request 220GSM Cotton FR Fabric Samples or Bulk Pricing
Tell us your required fabric weight, color, width, finishing function, application region and target standards. SAFE-GUARD can help develop 220GSM cotton FR fabric for lightweight workwear, industrial uniforms and protective clothing projects.
We can provide sample, technical data and bulk pricing support based on your project requirements.
